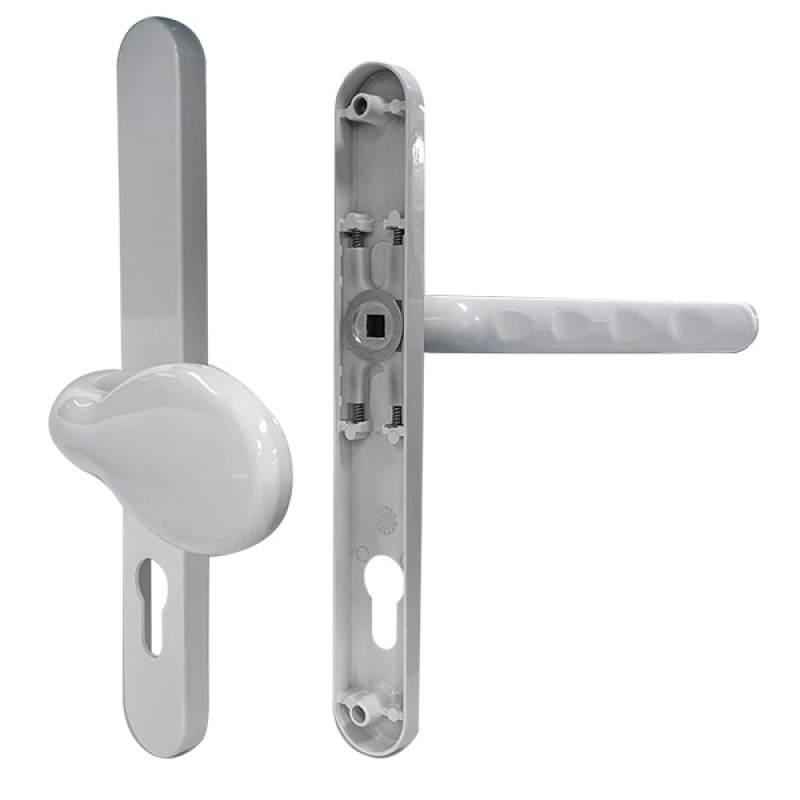

243mm Split Spindle Pad Door Handle

__________________________________________
__________________________________________________

Features:

- 243mm long backplate

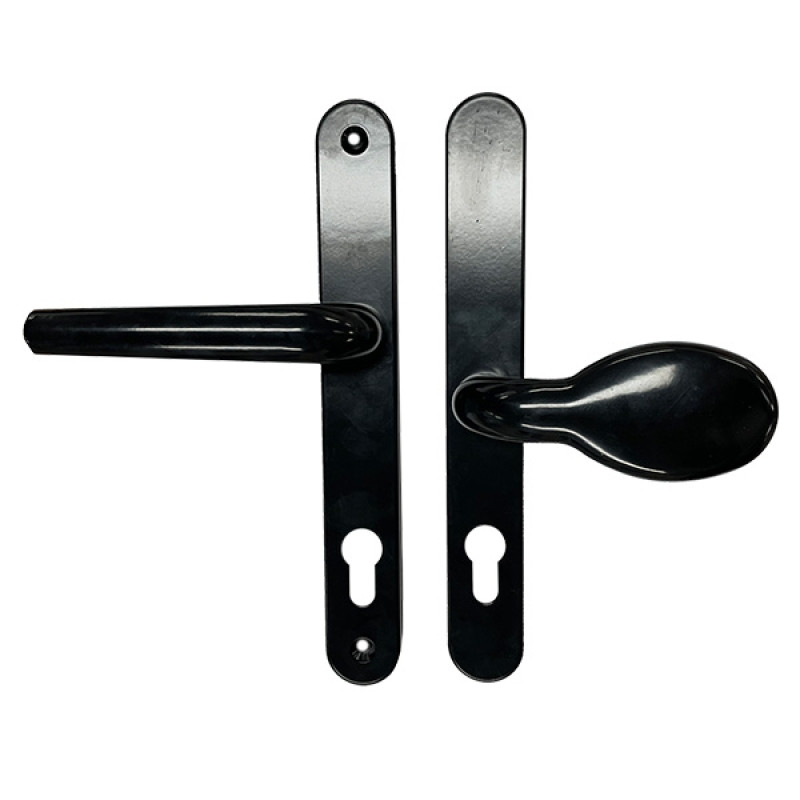

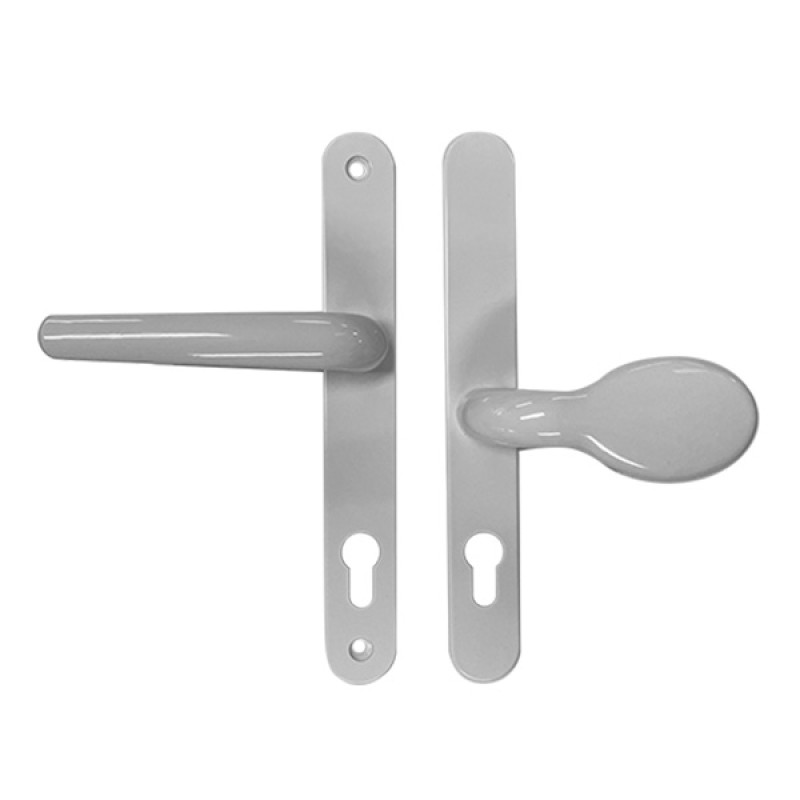

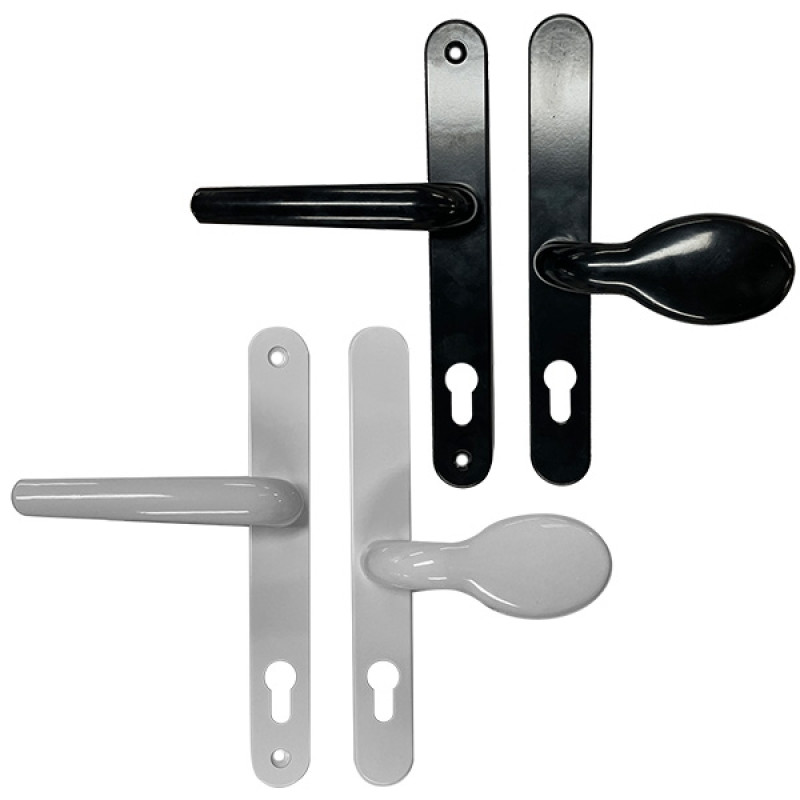

- Available in a black or white finish
Each handle comes with a pad shaped external handle
- External pad handle gives a comfortable grip when operating externally
- 62/92mm centres split spindle lever/pad
- Manufactured from aluminium
- Each handle comes with a 5 year coating guarantee
- Non-handed - can be used as either a left or right hand

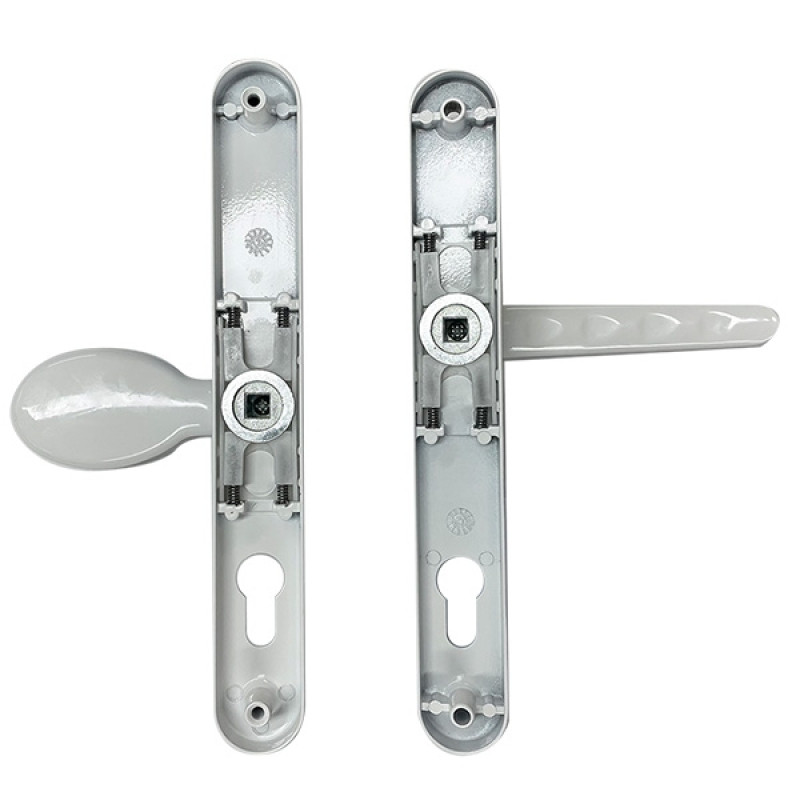

- Can be inline and operate from one single spindle or independently from each side of the door when using two inline or two offset spindles
- When the door is closed the pad will not open without the key


Handle Sizes:

- Distance between screw holes: 211mm
- Door handle length: 243mm
- Door handle height: 33mm

__________________________________________
__________________________________________________

The Split Spindle Pad Door Handle is part of the door handle collection from UAP Limited. Features a 243mm long backplate and pad shaped external handle. Available in a black or white finish, the handles are manufactured from aluminium and come with a five year colour fast guarantee.

Can be used on uPVC, timber or composite doors as long as the lock within the door is suitable. Lever/pad handles are for split spindle locks, also known as split follower locks. Lever/pad handles have offset handles operating independently from each other on opposite sides of the door using two offset spindles. The external pad handle does not allow the latch to be withdrawn or the door to be opened from outside without the use of a key. This would prevent unauthorised access from outside if a door has not been fully locked e.g., if a door has been just closed but not locked when bringing in shopping.
